What is Kubernetes?
Kubernetes — also known as “k8s” or “kube” — is a container orchestration platform for scheduling and automating the deployment, management, and scaling of containerized applications.
Kubernetes was first developed by engineers at Google before being open sourced in 2014.
It is a descendant of Borg, a container orchestration platform used internally at Google. Kubernetes is Greek for helmsman or pilot, hence the helm in the Kubernetes logo
Today, Kubernetes and the broader container ecosystem are maturing into a general-purpose computing platform and ecosystem that rivals — if not surpasses — virtual machines (VMs) as the basic building blocks of modern cloud infrastructure and applications.
This ecosystem enables organizations to deliver a high-productivity Platform-as-a-Service (PaaS) that addresses multiple infrastructure-related and operations-related tasks and issues surrounding cloud-native development so that development teams can focus solely on coding and innovation.
- Kubernetes is a container management Platform
- Created by Google
- Written in Go/GoLang
- Also known as K8s
Docker Compose V/c Kubernestes:
Difference Between Docker-Compose and Kubernetes | Baeldung
Kubernetes Architecture:
Kubernetes - Master Machine Components
Following are the components of Kubernetes Master Machine.
etcd
It stores the configuration information which can be used by each of the nodes in the cluster. It is a high availability key value store that can be distributed among multiple nodes. It is accessible only by Kubernetes API server as it may have some sensitive information. It is a distributed key value Store which is accessible to all.
API Server
Kubernetes is an API server which provides all the operation on cluster using the API. API server implements an interface, which means different tools and libraries can readily communicate with it. Kubeconfig is a package along with the server side tools that can be used for communication. It exposes Kubernetes API.
Controller Manager
This component is responsible for most of the collectors that regulates the state of cluster and performs a task. In general, it can be considered as a daemon which runs in nonterminating loop and is responsible for collecting and sending information to API server. It works toward getting the shared state of cluster and then make changes to bring the current status of the server to the desired state. The key controllers are replication controller, endpoint controller, namespace controller, and service account controller. The controller manager runs different kind of controllers to handle nodes, endpoints, etc.
Scheduler
This is one of the key components of Kubernetes master. It is a service in master responsible for distributing the workload. It is responsible for tracking utilization of working load on cluster nodes and then placing the workload on which resources are available and accept the workload. In other words, this is the mechanism responsible for allocating pods to available nodes. The scheduler is responsible for workload utilization and allocating pod to new node.
Kubernetes - Node Components
Following are the key components of Node server which are necessary to communicate with Kubernetes master.
Docker
The first requirement of each node is Docker which helps in running the encapsulated application containers in a relatively isolated but lightweight operating environment.
Kubelet Service
This is a small service in each node responsible for relaying information to and from control plane service. It interacts with etcd store to read configuration details and wright values. This communicates with the master component to receive commands and work. The kubelet process then assumes responsibility for maintaining the state of work and the node server. It manages network rules, port forwarding, etc.
Kubernetes Proxy Service
This is a proxy service which runs on each node and helps in making services available to the external host. It helps in forwarding the request to correct containers and is capable of performing primitive load balancing. It makes sure that the networking environment is predictable and accessible and at the same time it is isolated as well. It manages pods on node, volumes, secrets, creating new containers’ health checkup, etc.

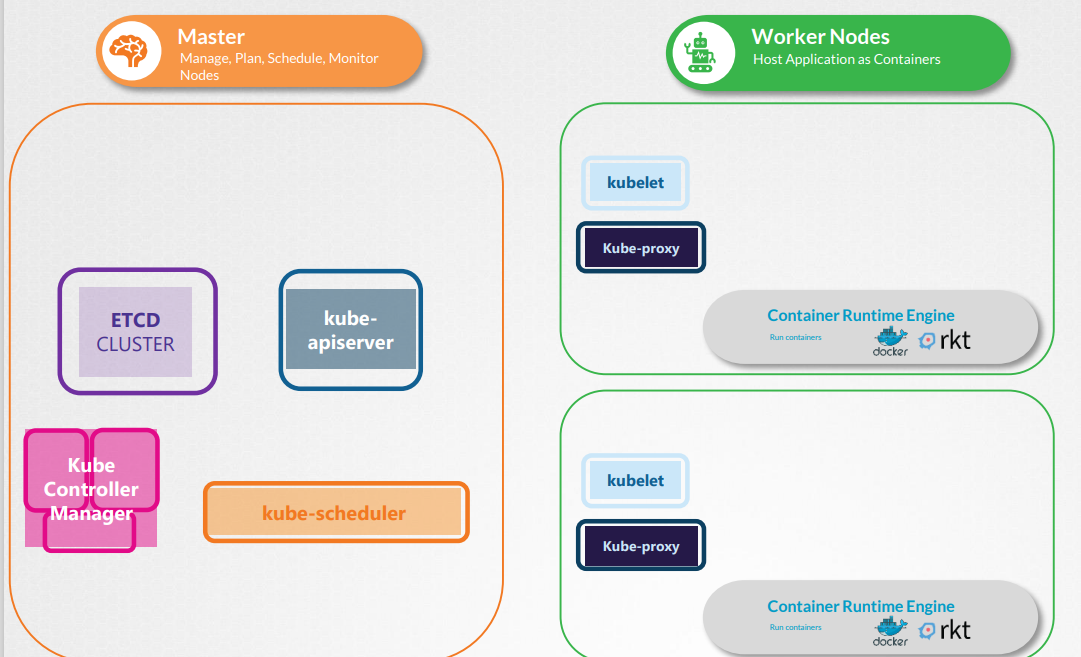

The following illustrations show the structure of Kubernetes Master and Node.
#Overall Flow
- kubectl writes to the API Server
- API Server validates the request and persists it to Cluster store(etcd)
- Cluster store (etcd) notifies back the API Server
- API Server invokes the Scheduler
- Scheduler decides where to run the pod on and return that to the API Server
- API Server persists it to etcd
- etcd notifies back the API Server.
- API Server invokes the Kubelet in the corresponding node
- Kubelet talks to the Docker daemon using the API over the Docker socket to create the container
- Kubelet updates the pod status to the API Server
- API Server persists the new state in etcd
curl https://docs.projectcalico.org/manifests/calico-typha.yaml -o calico.yaml
kubectl apply -f calico.yamlsudo mkdir ~/.kube
sudo cp /etc/kubernetes/admin.conf ~/.kube/
cd ~/.kube
sudo mv admin.conf config
sudo service kubelet restart
To start using your cluster, you need to run the following as a regular user:
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
Alternatively, if you are the root user, you can run:
export KUBECONFIG=/etc/kubernetes/admin.conf
=====================#Setup Worker Node
Run the command that got printed after initializing the cluster
Here, the kubernetes cluster is ready to use.
#Setup Nginx webserver
1. Create deployment
#kubectl create deployment nginx --image=nginx:latest
2. Create a service to expose applications on node port
#kubectl expose deployment nginx --type=NodePort --port 80
3. Check on which node port the application is running
#kubectl get svc
4.Surf the application on browser.
=====================
Minikube Setup:
Interactive Terminal:
